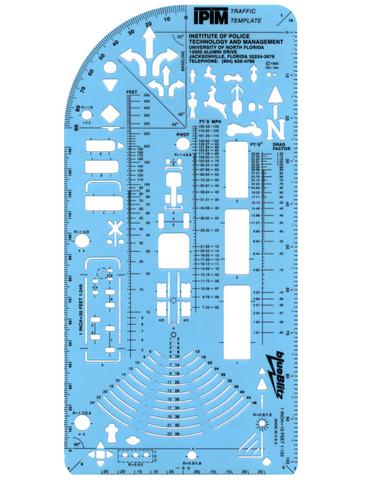

Traffic Template

Accident Investigation Template

Template is prepared in 10 ft. and 20 ft. scales
Radii can be drawn in 1 ft. increments from 1 - 100 ft. on the 10 ft. scale or in 2 ft. increments from 2 - 200 ft. on the 20 ft. scale
Symbols:

Motorcycles - side and top view
Pedestrians - front/rear view and top view facing forward
Automobiles - various sizes
Commercial vehicles - trucks, tractors and trailers
Circles and arcs of various radii
Animals
All vehicle cutouts are cross-referenced to corresponding wheel sizes
Special features:

Material is both pliable and damage-resistant
Non-reflective blue color gives markings high visibility
Clearly illustrated instruction booklet makes use simple
Speed nomograph with easy-to-read numbers
Clinometer for use on grades up to ±25%
Protractor
